Khoom Piav Qhia

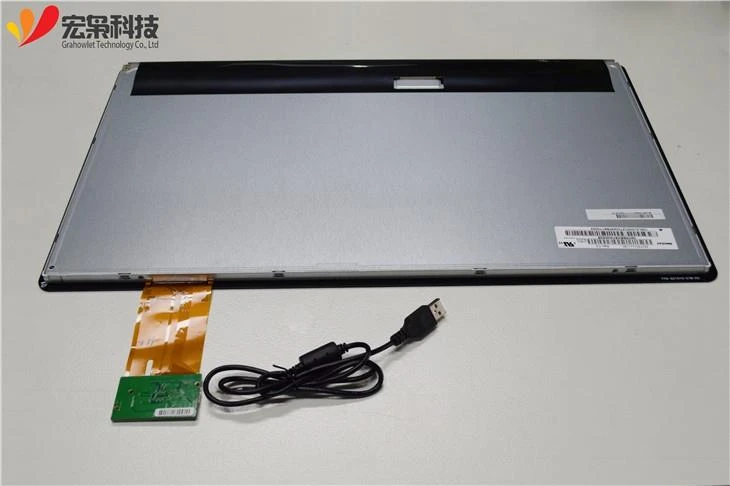

-Qhov 21.5 nti lcd kov screen rau lub tshuab muag khoom yog 10 point PCAP touch screen nruab nrog Full HD IPS 1920 * 1080 lcd zaub uas tau muab cov duab zoo, zoo xim thiab zoo heev TXHUA YAM saib cov ces kaum nrog qhov zoo thiab zoo siv kev paub.
-Qhov 21,5 nti lcd kov screen rau lub tshuab muag khoom yog USES industrial kov nti ILITEK IC, uas muaj cov kev ua haujlwm tiv thaiv kev cuam tshuam zoo thiab tuaj yeem siv rau ntau hom kev siv hauv ib puag ncig. Xws li ua haujlwm zoo nrog 3-10 hli thickness tempered iav, hnab looj tes thiab PC onside.
-Qhov 21,5 nti lcd kov npo rau lub tshuab muag khoom txhawb nqa kev kho kom haum ntawm cov qauv thiab kho saum npoo, Los tiv thaiv Glare, Los cuam tshuam, Los tiv thaiv ntiv tes kho. Peb 21,5 nti lcd kov screen rau lub tshuab muag khoom tuaj yeem tsim nyob rau hauv xaiv cov duab, xim, qhov loj me ntawm lub khob npog, tuab, kaum nrog logo thiab lwm yam ntxiv raws li kev cai tshwj xeeb los ntawm cov neeg siv khoom.
TPM | Tus Qauv Zauv | HX2151706 |
Lub Hom | Txhoom | |
Qhov Coob | 21,5 nti | |
Kev khiav hauj lwm kub | 0 ℃ ~ 50 ℃ | |
Cia Khoom Kub | -20 ℃ ~ 60 ℃ | |
Qhia Tawm Qhov Loj | 510.80 (W) X309.85 (H) X13.7 (D) hli | |
Saib Thaj Chaw | 477.64 (W) X269.11 (H) hli | |
Thaj Tsam Thaj Tsam | 476.064 (W) X267.786 (H) hli | |
Cov Txheej Txheem Txhawb Nqa | Windows / Android / Linux thiab lwm yam. | |
Warranty | 1 xyoos | |
CTP | Interface Hom | USB |
Cov Khoom Siv / Cov Qauv | G + G | |
Xws li IC | YAWG | |
Kov Cov Ntsiab Lus | 10 ntsiab lus | |
Pob tshab | 85% | |
Nto Hardness | 6H | |
Lub Hwj Chim Mov Voltage | 5V | |
TFT | Daws Teeb Meem | Xyoo 1920X1080 |
Interface Hom | LVDS / H DMI / VGA | |
Looj Ceeb | 250 cd / ㎡ | |
Saib Lub Kaum | TXHUA |
Thov
Peb Pab
kev tshem tawm qhov programe | 1 mus rau 2 teev caij ntuj |
Kos duab | 2 txog 3 hnub ua haujlwm |
Customized khoom | 3 txog 4 lub lim tiam (tom qab kos duab paub tseeb) |
Khoom Siv Ntau Lawm | 4 txog 6 lub lis piam |
Software debugging | |
Peev Xwm | 80K ib hlis twg |
Txoj kev muaj peev xwm | G + G, G + F + F, cov txheej txheem tiv thaiv, tag nrho cov qauv sib koom ua ke txheej txheem (Txheej Txheem Pom Zoo) (siab tshaj 65 ") Npog iav nto kho AR, AG, AF |
Kev txhawb nqa kev qhia | Cov kws tsim choj muab qhov rooj rau qhov rooj lossis kev pabcuam tau nkag tau hauv 24 teev |
Cov khoom siv ruaj khov saw tsawg kawg 3 xyoos lav | |
Ib lub xyoo lav rau tag nrho peb cov khoom | |
saib cov neeg muaj nuj nqi
Cov FAQ
Q: Dab tsi yog lub ntsiab cai ntawm lub peev xwm kov kov tau ua tiav kov ntau?
A: Thaum tus ntiv tes mus kov qhov screen capacitive, nws cuam tshuam rau txoj kev txuas ntawm ob qho hluav taws xob nyob ze qhov chaw kov, yog li hloov lub capacitance ntawm ob lub electrodes. Thaum kuaj pom qhov sib thooj sib txuas, tom qab ntawv txuas cov electrodes tom qab tawm kev tshaj tawm excitation mem tes teeb liab, thiab txhua qhov txuas ntawm cov hluav taws xob ntev tau txais cov cim qhia tib lub sijhawm, yog li cov teeb meem capacitance ntawm txhua qhov kev sib tshuam ntawm cov hluav taws xob rau ib sab thiab ntev tau txais, uas yog, Lub dav hlau ntim ob npaug ntawm cov kov tag nrho. Raws li kev piav qhia ob qho kev hloov pauv ntawm cov ntaub ntawv ntawm lub vijtsam kov, qhov sib koom tes ntawm txhua tus taw tes kov tau tuaj yeem xam. Ntawd yog, qhov kev sib koom tes ntau lub ntsiab lus tuaj yeem raug suav kom paub txog ntau kov.
